Power transformers are vital components of the electrical power system, ensuring the efficient transmission and distribution of electricity over vast distances. In this article, we’ll delve into the intricate details of What is power transformer, covering their working principles, components, types, and much more.

What is a Power Transformer?

A power transformer is an electrical device designed to transfer electrical energy between circuits through electromagnetic induction. Operating primarily at high voltages, it is used to step up (increase) or step down (decrease) voltage levels in power systems. Power transformers play a crucial role in reducing energy losses during long-distance transmission and enabling the efficient functioning of power grids.

Key Features

• High efficiency
• Operates at full load conditions
• Designed for steady-state operation

Features of Power Transformers

Power transformers come with distinct technical features and specifications designed for optimal performance in electrical systems. The table below highlights the key features and their descriptions:

What is the Operating Principle of Power Transformers?

The operating principle of power transformers is based on Faraday’s Law of Electromagnetic Induction, which states that a change in magnetic flux through a coil induces an electromotive force (EMF) in it.

The voltage transformation ratio is directly proportional to the ratio of turns in the primary and secondary windings, making it possible to step up or step down voltage as required.

What are the Components of Power Transformers?

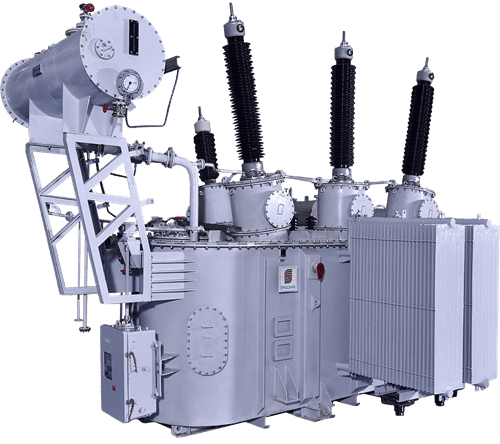

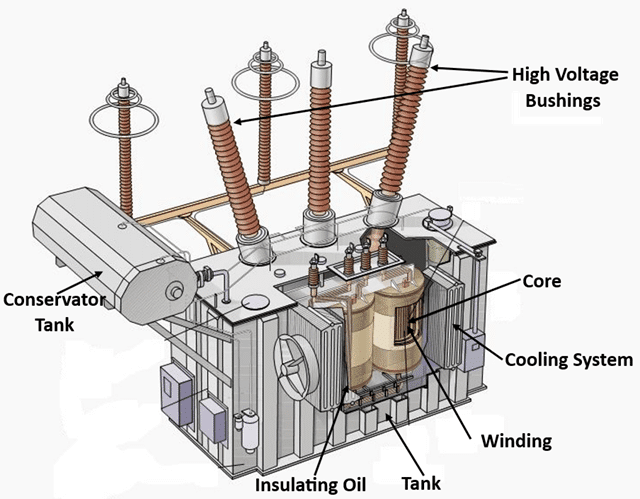

Power transformers consist of several critical components, each contributing to their functionality and efficiency:

1. Core

The core is constructed from laminated silicon steel to minimize energy losses due to eddy currents and hysteresis. It provides a low-resistance path for the magnetic flux, ensuring efficient energy transfer.

2. Windings

Windings are made of high-conductivity materials like copper or aluminum. The primary winding receives the input energy, while the secondary winding delivers transformed energy to the load. Proper insulation ensures safety and prevents electrical faults.

3. Tank

The tank is a robust, sealed structure that encloses the core and windings, protecting them from environmental factors and mechanical damage. It also contains insulating oil for cooling and insulation.

4. Insulating Oil

This specialized oil performs dual functions: dissipating heat generated during operation and providing electrical insulation between internal components.

5. Tap Changer

The tap changer allows adjustment of the voltage ratio by altering the number of turns in the winding. This ensures voltage stability under varying load conditions.

6. Bushings

Bushings are insulated terminals that provide a safe passage for conductors to connect the transformer to the external circuit, preventing electrical leakage.

7. Cooling System

Cooling systems regulate the operating temperature, preventing overheating. They may include radiators, fans, pumps, or heat exchangers.

8. Conservator Tank

This auxiliary tank accommodates the expansion and contraction of insulating oil caused by temperature changes, maintaining consistent pressure inside the transformer.

How Does a Power Transformer Work?

A power transformer operates through the following detailed steps:

1. Voltage Application to Primary Winding

   • When AC is applied to the primary winding, it generates an alternating magnetic flux in the core.

2. Magnetic Flux Creation

   • The core efficiently channels the flux, which alternates at the same frequency as the input AC.

3. Flux Linkage with Secondary Winding

   • The alternating flux links to the secondary winding, inducing an EMF in accordance with Faraday’s Law.

4. Voltage Transformation

   • The EMF induced in the secondary winding produces a voltage proportional to the winding ratio. If the secondary winding has more turns, the voltage is stepped up; if fewer, it is stepped down.

5. Load Supply

   • The transformed voltage is delivered to the connected load, ensuring efficient energy transfer without significant losses.

What are the Different Types of Power Transformers?

Power transformers can be classified based on their design, cooling methods, and applications. Below is a detailed explanation of each type:

1. By Voltage Levels

• Step-Up Transformers:These transformers increase voltage from lower levels, typically at generation stations, to high levels for efficient long-distance transmission. By reducing current, they minimize resistive losses in transmission lines, ensuring efficient energy delivery.
• Step-Down Transformers:These are used to reduce voltage levels for distribution to residential, commercial, and industrial consumers. Step-down transformers are critical for safety and compatibility with low-voltage devices.

2. By Cooling Methods:

• Oil-Cooled Transformers: These transformers use insulating oil as a cooling medium. The oil absorbs heat from the windings and core, transferring it to the external radiators. Suitable for high-capacity applications, they are common in outdoor installations.
• Dry-Type Transformers: Instead of oil, these transformers use air or gas for cooling. They are ideal for indoor applications where fire hazards associated with oil are a concern. Dry-type transformers are often used in commercial buildings and industrial plants.

3. By Phases:

• Single-Phase Transformers: Designed for low-power applications, these transformers are used in rural electrification, small-scale industries, and household appliances. They are simpler in design and easier to maintain.
• Three-Phase Transformers: Commonly used in industrial and utility applications, three-phase transformers handle large power capacities. They are more efficient for transmitting and distributing electricity in high-demand scenarios.

Why Do We Use Power Transformers in the Electrical Power System?

Power transformers are indispensable due to their ability to:

• Minimize Transmission Losses: Stepping up voltage reduces current and associated resistive losses.
• Enhance Efficiency: Enable the use of smaller, cost-effective conductors for long-distance transmission.
• Ensure System Safety: Step-down voltage ensures compatibility with end-user equipment and safety standards.

Where is a Power Transformer Used?

Power transformers are utilized in:

What is the Difference Between Transformer and Power Transformer?

Frequently Asked Questions (FAQs)

1. What is the lifespan of a power transformer?

Power transformers typically last 20-30 years, depending on maintenance and operational conditions.

2. Can a power transformer be repaired?

Yes, minor faults like insulation damage can be repaired. However, severe damage may require replacement.

3. What is a tap changer?

A tap changer adjusts the transformer’s voltage ratio to regulate output voltage for varying load conditions.

4. How to test a power transformer ?

Common tests include insulation resistance testing, dielectric tests, and load tests to ensure functionality and safety.

5. Are power transformers environmentally friendly?

Modern designs use eco-friendly insulating oils and materials to reduce environmental impact.

6. What are the key maintenance practices for power transformers?

Regular inspections, oil testing, and cooling system checks are vital to ensure optimal performance and longevity.

7. What causes overheating in power transformers?

Overloading, poor cooling, or insulation failure can lead to overheating. Regular maintenance helps prevent such issues.

8. What materials are used in transformer cores?

Laminated silicon steel is commonly used to minimize eddy current losses and enhance efficiency.

9. What is the role of insulating oil in transformers?

It acts as a coolant and insulator, preventing arcing and maintaining operational stability.

10. Why it is good to install power transformers outdoors?

Due to their large size and potential fire hazards, it is better to install power transformers  outdoors for safety and space considerations.
