MOSFET (Metal Oxide Semiconductor Field Effect Transistor) is the most widely used types of insulated gate FETs. They are used in various applications due to its simple working phenomena and advantages over other FETs. This post entails What is MOSFET, its working principle, types of MOSFETs, symbols, various applications, advantages and disadvantages in detail.

What is MOSFET

Metal Oxide Silicon Field Effect Transistor is abbreviated as MOSFET. It is merely a unipolar transistor and used as an electronic switch and to amplify electronic signals. The device has three terminals consisting of a source, gate and drain. Apart from these terminals there is a substrate generally called the body which is always connected to the source terminal for practical applications.

In recent years, its discovery has led to the dominant usage of these devices in digital integrated circuits due to its structure. The Silicon di-oxide (SiO2) layer acts as an insulator and provides electrical isolation between the gate and an active channel between the source and the drain which provides high input impedance which is almost infinite thus capturing all the input signal.

Working Principle of MOSFET

Structural and Physical View of MOSFET

Fig.1 – Structural and Physical View of MOSFET

It is fabricated by the oxidation of silicon substrates. It works by altering the width of the channel through which the movement of charge carriers (electrons for N-channel and holes for P-channel) occurs from source to drain. The gate terminal is insulated whose voltage regulates the conductivity of the device.

Types of MOSFET

On the basis of Operational Mode, MOSFETs can be classified into two types.

  • Enhancement Type MOSFETs
  • Depletion Type MOSFETs

Types of MOSFET

Fig.2 – Types of MOSFET

Enhancement Type MOSFET

In this mode, there is no conduction at zero voltage which implies it is closed or “OFF” by default as there is no existing channel. When the gate voltage is increased more than the source voltage, the charge carriers (holes) shifts away leaving behind the electrons and thus a wider channel is established.

The gate voltage is directly proportional to the current i.e. as the gate voltage increases the current increases and vice versa.

Types of Enhancement MOSFETs

The Enhancement MOSFETs can be classified into two types depending upon the type of doped substrate (n-type or p-type) used.

  • N Channel Enhancement Type MOSFETs
  • P Channel Enhancement Type MOSFETs

N Channel Enhancement Type MOSFETs

N Channel Enhancement Mode MOSFET

Fig.3 – N Channel Enhancement Type MOSFET

  • A lightly doped P-type substrate forms the body of the device and the source and drain are heavily doped with N-type impurities.
  • N-channel have electrons as majority carriers.
  • The applied gate voltage is positive to turn “ON” the device.
  • It has lower inherent capacitance and smaller junction areas due to the high mobility of electrons which makes it to operate at high switching speeds.
  • It contains positively charged contaminants which makes the N-channel MOSFETs to turn on prematurely.
  • Drain resistance is low compared to P-type.

P Channel Enhancement Type MOSFETs

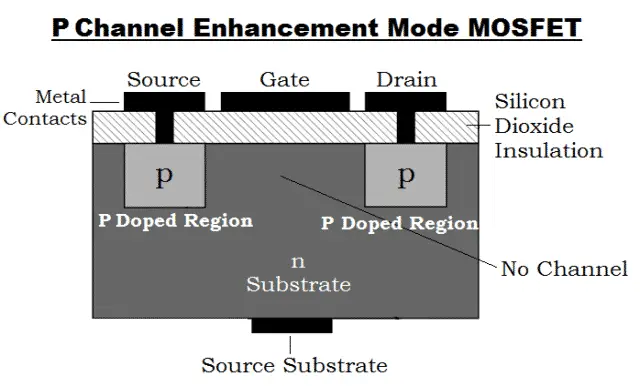

P Channel Enhancement Mode MOSFET

Fig.4 – P Channel Enhancement Type MOSFET

  • A lightly doped N-type substrate forms the body of the device and the source and drain are heavily doped with P-type impurities.
  • P-channel have holes as majority carriers.
  • It has higher inherent capacitance and mobility of holes is low which makes it to operate at low switching speed compared to N-type.
  • The applied gate voltage is negative to turn “ON” the device.
  • Drain resistance is higher compared to N-type.

Depletion Type MOSFET

In this type, the channel is already established and it is evident that the conduction occurs even at zero voltage and it is open or “ON” by default. Unlike Enhancement type, here the channel is depleted of charge carriers to reduce the width of the channel.

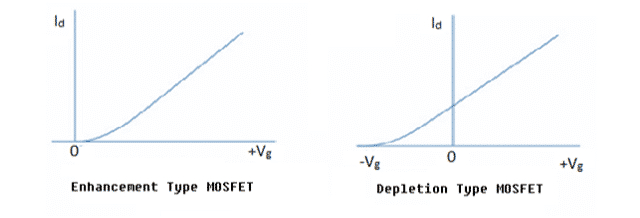

Gate Voltage verses drain characteristics of MOSFETFig.5 – Gate Voltage verses drain characteristics of MOSFET

The gate voltage is inversely proportional to the current i.e. as the gate voltage increases the current decreases.

Types of Depletion MOSFETs

The Depletion MOSFETs can be classified into two types depending upon the type of doped substrate (n-type or p-type) used.

  • N Channel Depletion Type MOSFET
  • P Channel Depletion Type MOSFET

N Channel Depletion Type MOSFETs

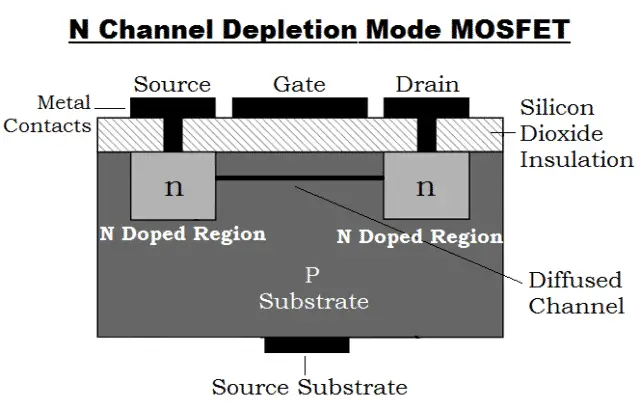

N Channel Depletion Mode MOSFET

Fig.6 – N Channel Depletion Type MOSFETs

  • The P-type semiconductor forms the substrate and the source and drain are heavily doped with N-type impurities.
  • The applied gate voltage is negative.
  • The channel is depleted of its free electrons.

P Channel Depletion Type MOSFETs

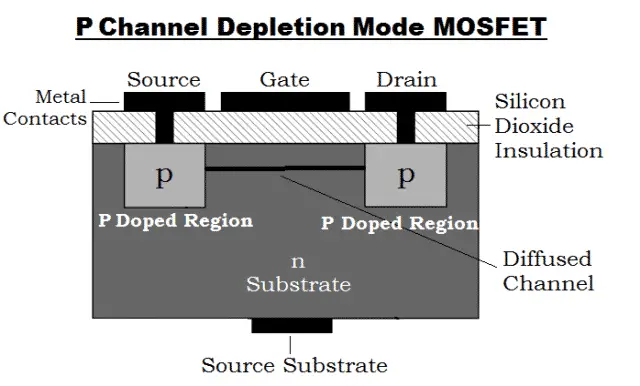

P Channel Depletion Mode MOSFET

Fig.7 – P Channel Depletion Type MOSFETs

  • The N-type semiconductor forms the substrate and the source and drain are heavily doped with N-type impurities.
  • The applied gate voltage is positive.
  • The channel is depleted of its free holes.

Symbols of Different Types of MOSFET

The symbols of various types of MOSFETs are depicted below.

Symbols of Enhancement and Depletion Type MOSFET

Fig.8 – Symbols of Enhancement and Depletion Type MOSFET (P, N)

Applications of MOSFET

  • MOSFET amplifiers are extensively used in radio frequency applications.
  • It acts as a passive element like resistor, capacitor and inductor.
  • DC motors can be regulated by power MOSFETs.
  • High switching speed of MOSFETs make it an ideal choice in designing chopper circuits.

Advantages of MOSFET

  • MOSFETs provide greater efficiency while operating at lower voltages.
  • Absence of gate current results in high input impedance producing high switching speed.
  • They operate at lower power and draws no current.

Disadvantages of MOSFET

  • The thin oxide layer make the MOSFETs vulnerable to permanent damage when evoked by electrostatic charges.
  • Overload voltages makes it unstable.
Author: Laxmi Ashrit, BE  (Electronics & Communication)
Work Experience includes HP and RelQ Software as Tech Support Executive and Testing Engineer
