In an increasingly interconnected world, the term “IP address” has become commonplace. It is the digital passport that allows us to navigate the vast landscape of the internet. In today’s digital age, the concept of Internet Protocol address is fundamental to understanding how the internet functions. Whether you’re a tech enthusiast, a network administrator, or simply an everyday user, grasping the intricacies of IP addresses can be invaluable.

IP-Address-Thumb

This comprehensive technical guide aims to provide an in-depth exploration of IP addresses, covering topics such as their definition, operation, various types, classes, methods to find your own IP address, and a look into the future of IP addressing.

What is an IP Address? Full Form & Definition

IP-Address

IP Address, short for Internet Protocol Address, is a unique numerical label assigned to every device connected to a network. It serves as the device’s digital identifier, facilitating communication in a vast and intricate web of interconnected devices, also known as the Internet.

How It Works?

Understanding how IP addresses function is crucial for comprehending their significance. The core functionality of Internet Protocol address can be broken down into the following steps:
  1. Data Division into Packets: When you send data over the internet, it’s divided into smaller units called packets. Each packet contains a portion of the data, along with information on the source and destination IP addresses.
  2. Routing: These packets are then sent through a series of routers, which act as digital traffic directors. Routers examine the destination Internet Protocol address in each packet to determine the most efficient path for forwarding it.
  3. Destination Reached: Once the packets arrive at their destination, they are reassembled in the correct order to reconstruct the original data. This process occurs seamlessly, making it appear as though data travels instantly.

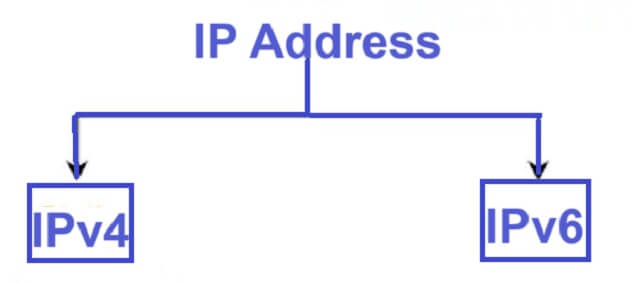

Versions of IP Addresses

IP addresses are classified into two primary Versions: IPv4 (Internet Protocol version 4) and IPv6 (Internet Protocol version 6).

Versions-of-IP

IPv4 (Internet Protocol version 4)

IPv4 addresses have been the backbone of the internet for decades. They consist of four sets of numbers, separated by periods, and each set ranges from 0 to 255. For example, 192.168.0.1 is a common IPv4 address. However, IPv4 addresses are running out due to the exponential growth of internet-connected devices.

IPv6 (Internet Protocol version 6)

IPv6 was introduced to overcome the scarcity of IPv4 addresses. It employs a 128-bit address format, which provides an astronomically larger pool of unique IP addresses. IPv6 addresses are represented in hexadecimal notation and look like this: 2001:0db8:85a3:0000:0000:8a2e:0370:7334.

IPv6 is the future of Internet Protocol addressing, ensuring that there are enough unique addresses to accommodate the ever-expanding internet ecosystem.

Difference Between IPv4 and IPv6

IPv4 (Internet Protocol version 4) and IPv6 (Internet Protocol version 6) are two distinct protocols that govern how data packets are addressed and transmitted over the Internet. While they share the same fundamental purpose, there are several key differences between them:

IPv4-vs-IPv6

Address Length

According to Address Length

  • IPv4: IPv4 addresses are 32-bit long, which allows for approximately 4.3 billion unique addresses. Due to the rapid growth of the internet and the proliferation of devices, IPv4 addresses have become scarce.
  • IPv6: IPv6 addresses are 128-bit long, providing an enormous address space of 340 undecillion (3.4 x 10^38) unique addresses. This abundance of addresses is one of the most significant advantages of IPv6.

Address Format

According to Address Format

  • IPv4: IPv4 addresses are written in decimal format and consist of four sets of numbers (octets) separated by periods. For example, 192.168.0.1.
  • IPv6: IPv6 addresses are expressed in hexadecimal format and consist of eight groups of four hexadecimal digits, separated by colons. For example, 2001:0db8:85a3:0000:0000:8a2e:0370:7334.

Address Configuration

According to Address Configuration

  • IPv4: IPv4 addresses can be configured manually (static) or dynamically assigned by a DHCP (Dynamic Host Configuration Protocol) server. Static IPv4 addresses are often used for servers and network devices, while DHCP is common for end-user devices.
  • IPv6: IPv6 supports both static and dynamic address assignment but also introduces a stateless address autoconfiguration feature. Devices can generate their IPv6 addresses based on router advertisements, simplifying network setup.

Network Classes and Subnetting

According to Network Classes and Subnetting

  • IPv4: IPv4 uses network classes (Class A, B, and C) to allocate address ranges, and subnetting is employed to divide large networks into smaller subnetworks.
  • IPv6: IPv6 eliminates the concept of network classes, making address allocation more flexible. Subnetting is still used but is more straightforward due to the vast address space.

Broadcast and Multicast

According to Broadcast and Multicast

  • IPv4: IPv4 uses broadcast for one-to-all communication within a network segment. It also supports multicast for one-to-many communication.
  • IPv6: IPv6 eliminates broadcast and relies entirely on multicast for one-to-many communication, which is more efficient and scalable.

NAT (Network Address Translation)

  • IPv4: Due to the shortage of IPv4 addresses, NAT is commonly used to map multiple private IP addresses to a single public IP address for internet access. NAT complicates some network configurations.
  • IPv6: IPv6’s vast address space reduces the need for NAT. Each device can have a unique, globally routable IPv6 address, simplifying end-to-end communication.

Header Format

  • IPv4: IPv4 headers are more complex and can introduce network overhead. They include fields like checksum and header length.
  • IPv6: IPv6 headers are simplified and more efficient. Fields like checksum and header length are removed, which reduces processing overhead on routers and devices.

Security and IPsec

  • IPv4: IPsec, a suite of security protocols, can be optionally used with IPv4. It’s not mandatory, which means security measures may vary.
  • IPv6: IPv6 incorporates IPsec as a mandatory part of the protocol, enhancing the security of data transmission.

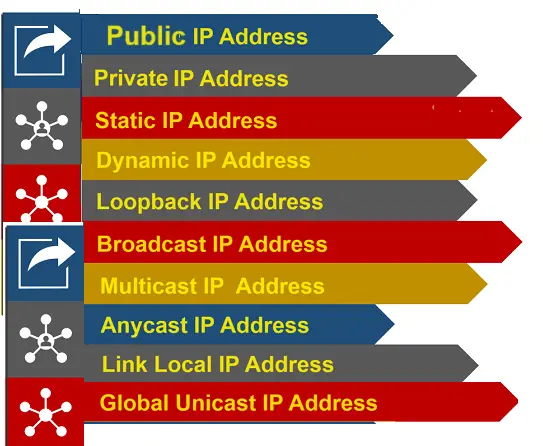

Types of IP Address

There are several different types of IP addresses used in networking, each serving a specific purpose. Here are some of the main types of IP addresses:

IP-Types

1. Public IP Address

A public IP address is assigned to a device by the Internet Service Provider (ISP) and is used to identify that device on the public internet. They are unique globally, and they are used for communication between devices on different networks across the internet. They are typically associated with routers, servers, and other devices that need to be accessible from the internet.

2. Private IP Address

A private IP address is used within a private network, such as a home or business network. These addresses are not accessible directly from the public internet. These Internet Protocol address (s) are used to identify devices within a local network and allow them to communicate with each other.

Common private IP address ranges include 192.168.x.x, 172.16.x.x – 172.31.x.x, and 10.x.x.x.

3. Static IP Address

A static IP address is manually configured for a device and remains constant. It does not change unless it is reconfigured. These IP addresses are often used for servers, routers, and other devices that require a consistent and predictable address for remote access.

4. Dynamic IP Address

A dynamic Internet Protocol address is assigned to a device by a DHCP (Dynamic Host Configuration Protocol) server. These addresses can change over time as devices connect and disconnect from the network. Dynamic IP addresses are commonly used for end-user devices like computers, smartphones, and tablets.

5. Loopback Address

The loopback address, represented as 127.0.0.1 in IPv4 and ::1 in IPv6, is used to test network connectivity on a local device. Data sent to the loopback address is directed back to the device itself.

6. Broadcast Address (IPv4 based)

Broadcast addresses are used in IPv4 networks to send data packets to all devices within a specific network segment. They have a host portion of all binary 1s in the subnet mask.

7. Multicast Address

Multicast addresses are used to send data to multiple devices that belong to a specific group. Devices interested in receiving multicast traffic can join the multicast group associated with a multicast address.

8. Anycast Address

Anycast addresses are used to identify a group of servers that provide the same service. When data is sent to an anycast address, it is routed to the nearest (or most appropriate) server in the group.

9. Link-Local Address (IPv6 based)

Link-local addresses are used for communication within a single network segment in IPv6. They are automatically configured and do not require a DHCP server.

10. Global Unicast Address (IPv6 based)

Global unicast addresses are the equivalent of public IPv4 addresses in IPv6. They are globally unique and used for communication over the internet.

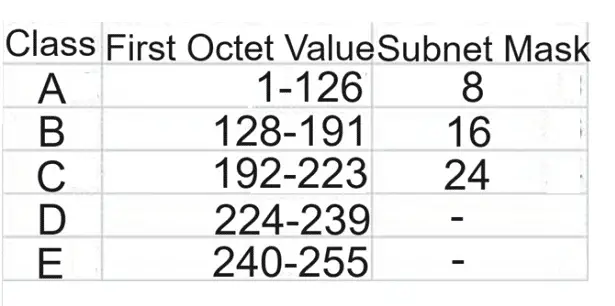

Classes of IP Addresses

IP addresses are further categorized into five classes, denoted by the first octet of the address. Each class serves a specific purpose:

Classes-of-IP

Class A:

Class A addresses are reserved for large networks, with the first octet ranging from 1 to 126. These addresses can accommodate over 16 million hosts on each network.

Class B:

Class B addresses are suitable for medium-sized networks, with the first octet ranging from 128 to 191. They can support around 65,000 hosts per network.

Class C:

Class C addresses are used for smaller networks, with the first octet ranging from 192 to 223. They can accommodate approximately 254 hosts per network.

Class D:

These addresses are reserved for multicast groups and are not typically assigned to individual devices.

Class E:

Class E addresses are reserved for experimental purposes and are not used in standard IP networking.

How to Find Your IP Address

Determining your device’s IP address is a straightforward process, and the method varies slightly depending on your operating system.

For Windows:

Microsoft Windows

  1. Open the Command Prompt by searching for “cmd” in the Start menu.
  2. Type “ipconfig” and press Enter.
  3. Look for the “IPv4 Address” (it may also be labeled as “IP Address”). This is your device’s IP address.

For macOS:

MAC OS

  1. Click on the Apple menu and select “System Preferences.”
  2. Then click on “Network.”
  3. Now your IP address will be displayed next to “Connected” or “Status.”

Finding your IP address is essential for tasks like troubleshooting network issues or configuring network-related settings.

Future of IP Address

The future of IP addressing is an exciting and critical topic as the internet continues to evolve. Several significant developments and challenges lie ahead:

Future-of-IP

1. IPv6 Adoption

The widespread adoption of IPv6 is a necessity as the pool of available IPv4 addresses diminishes. IPv6’s vast address space ensures that the internet can continue to grow without running out of unique IP addresses.

2. Enhanced Security

IP addresses play a pivotal role in cybersecurity. In the future, we can expect enhanced security features and protocols that will help authenticate and secure devices on the internet more effectively. This includes robust encryption and authentication mechanisms to protect against cyber threats.

3. IoT and IP Addresses

As the Internet of Things (IoT) expands, the demand for IP addresses will skyrocket. To accommodate this growth, efficient management and allocation of IP addresses will be crucial.

4. Transition Technologies

During the transition from IPv4 to IPv6, various technologies and protocols will play a vital role in ensuring seamless communication between devices using different IP versions. These transition mechanisms will be pivotal for a smooth migration.

5. Network Virtualization

Network virtualization technologies, such as Software-Defined Networking (SDN) and Network Function Virtualization (NFV), will continue to influence IP addressing, and hence making networks more agile and adaptable.

6. Address Ownership and Privacy

Address ownership and privacy concerns will become increasingly important. New methods of addressing and managing personal information related to IP addresses may emerge to safeguard users’ privacy.

Conclusion

IP addresses are the linchpin of the internet, enabling seamless communication between countless devices across the globe. Understanding their types, classes, and the mechanisms by which they function is essential for anyone involved in the world of technology. As we look to the future, IPv6 adoption, enhanced security, and addressing the unique challenges of the IoT era will be at the forefront of IP addressing developments. By staying informed about these changes, we can ensure that the internet remains a dynamic and secure platform for years to come.
