Voltaic Cell – Construction, Types, How it Works, Applications, Advantages

Voltaic Cell is primarily used to produce Electrical energy through chemical reactions. It is also called Galvanic Cell. This post will discuss in detail about what is Voltaic Cell or Galvanic Cell, it’s construction and types, how it works, applications and advantages.

What is Voltaic Cell or Galvanic Cell

Voltaic Cell (Galvanic Cell) is an electrochemical cell which derives electrical energy from spontaneous redox reactions occurring in the cell. The energy is harnessed by separating the reactants from direct contact with each other while ensuring a channel for the Electrons to flow through them.

Introduction to Galvanic Cell

Fig. 1 – Introduction to Voltaic Cell

The Voltaic Cell was named after its inventor, the famous Italian physicist, Alessandro Volta, in 1799. Based on Luigi Galvani’s phenomenon of Electrochemical change, he invented “The Voltaic Pile” that is classic Voltaic Cell, which was the first Electrical Battery that could consistently supply an electric current to a circuit. Earlier these cells were used to study the Thermodynamic properties of fused salts.

Typical Voltaic Pile, Alessandro Volta

Fig. 2 – (a) Voltaic Pile (b) Alessandro Volta

Construction of Voltaic Cell (Galvanic Cell)

The complete Voltaic Cell consists of two half-cells, normally joined by a semi-permeable membrane or a salt bridge which prevents the ions of the more noble metal from plating out at the other electrode. The electrodes are first immersed in electrolyte solutions.

Then they are connected through an electrical load. It is an Electrochemical Cell with two conductive electrodes. An electrode is a solid electric conductor which supplies electric current into non-metallic solids, liquids or gases etc.

Construction of Voltaic Cell

Fig. 3 – Construction of Voltaic Cell

The Voltaic Cell uses two separate metal electrodes each in a solution of electrolytes. The two types of electrodes are anode and cathode. The anode is described as the electrode where oxidation takes place and the cathode is defined as the electrode where reduction occurs. The electrolyte solution contains cations (+) of the electrode metal and anions (−) for balancing cation charges.

Half-cells are nothing but separate slots in which reduction and oxidation takes place. External circuit provides a pathway for the flow of Electrons as shown in the Fig. 3. If both the Electrodes are immersed in the same Electrolyte, then Salt bridge is not required.

Types of Voltaic Cell

They are basically of two types. They are:

  • Primary Cell
  • Secondary Cell

Primary Cell

A cell which acts as a source of electricity without being previously charged by an electrical current from an external source is called a Primary Cell. In this type of cell, electrical energy is obtained solely by the chemical reactivity as long as the active materials are present. The types of Primary Cell are:

  • Dry Cell
  • Mercury Cell
  • Alkaline cell

Dry Cell

A Dry Cell is a type of electric battery commonly used for electrical portable devices. It was invented by the German scientist Carl Gassner in 1886 after the invention of wet zinc-carbon batteries by the French engineer Georges Leclanché in 1866. A standard Dry Cell is made up of a zinc anode, which is usually a cylindrical pot, and a carbon cathode in the shape of a central rod.

Schematic diagram of Dry Battery

Fig. 4 – Schematic Diagram of Dry Cell

The electrolyte is Ammonium Chloride next to the Zinc anode, in the form of a paste. Another composition of Ammonium Chloride and Manganese dioxide takes up the remaining space between the electrolyte and the carbon cathode, the latter serving as a depolarizer. The voltage of a Dry Cell battery is 1.5 V.

Mercury Cell

Mercury Cells cause a reaction between Mercuric Oxide and Zinc electrodes in an alkaline electrolyte to produce electricity. Mercury Cells are used as button cells for watches, hearing aids, cameras and calculators.

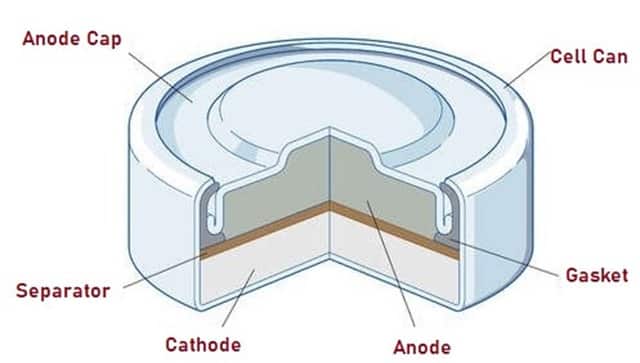

Schematic diagram of Mercury battery

Fig. 5 –  Schematic Diagram of Mercury Cell

Alkaline Cell

The Alkaline Cells receive their energy by causing a reaction between Zinc metal and Magnesium dioxide. Alkaline cells are named as such because they have an alkaline electrolyte of potassium hydroxide, unlike acidic electrolytes used in many other cells.

Alkaline Cells have the same voltage as dry cells, but have a higher energy density and are more long-lasting than dry cells. Alkaline cells are used MP3 or CD players, cameras, flashlights and toys.

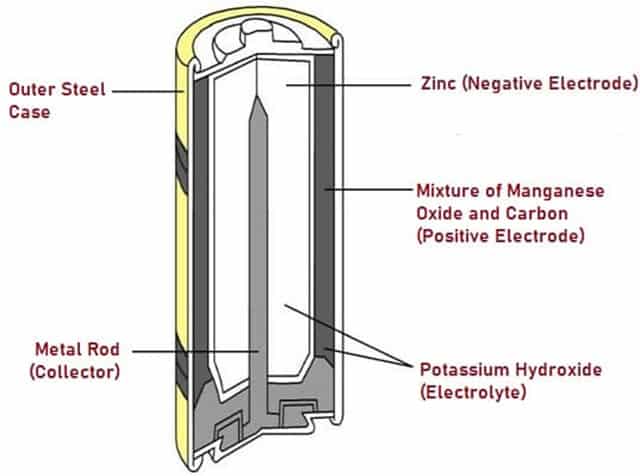

Schematic diagram of Alkaline battery

Fig. 6 – Schematic Diagram of Alkaline Cell

Secondary Cell

Secondary Voltaic Cell (Electrical Battery) once used can be recharged by passing a current through it and it may, therefore, be used over and over again. Chemical changes take place when the cell is charged with electricity. These changes are reversed during discharge.

Secondary batteries are classified based on the material used to construct them. They are:

  • Nickel-Cadmium Cell
  • Lead-Acid Cell
  • Lithium-Ion Cell

Types of Secondary Cells

Fig. 7 – Types of Secondary Cells (a) Nickel-Cadmium Cell (b) Lead-Acid Cell (c) Lithium-Ion Cell

Nickel-Cadmium Cell

Nickel Oxide Hydroxide and Metallic Cadmium electrodes are used in this type of cells. Hence, it is also called NiCd or NiCad batteries.

Lead-Acid Cell

The Lead-Acid type of Voltaic cell is generally used in automobiles. When the cell is fully charged, the negative plate contains lead while the positive plate contains lead dioxide. The electrolyte solution, which is basically a higher concentration of aqueous sulphuric acid, stores most of the chemical energy.

While discharging, both the positive and the negative plates are converted to lead sulphate. The electrolyte loses most of its dissolved sulphuric acid and converts into water.

Lithium-Ion Cell

The Lithium-Ion cells are used in mobile phones. During discharging, the Lithium-Ions move from the negative electrode through an electrolyte to the positive electrode, and vice versa while charging.

How does Voltaic Cell Work

Usually, in a Voltaic Cell, the anode is made with Zinc (Zn) and the cathode is made with Copper. The anode is immersed in a solution of Zinc Sulfate and the cathode is immersed in a solution of Copper Sulfate. To complete the electric circuit a salt bridge is required here.

If the Copper and Zinc electrodes are connected by an external electrical conductor, Zinc from the zinc electrode dissolves into the solution as Zn2+ ions (oxidation), releasing electrons which enter the external conductor.

How does it Work

Fig. 8 – Working of Voltaic Cell

To catch up with the increased Zinc ion concentration, via the Salt bridge, Zinc ions leave and anions enter the Zinc half-cell. Inside the Copper half-cell, the Copper ions plate on the Copper electrode (reduction), take up electrons that leave the external conductor. The electrochemical reaction is:

Zn + Cu2+ → Zn2+ + Cu

At the time of the reaction, the Zinc electrode will be used and the metal will shrink in size, but the Copper electrode will become larger due to the deposited Cu that is being produced. To keep the charge flowing through the cell a salt bridge is required.

Without the salt bridge, the electrons produced at the anode will be deposited at the cathode and the reaction would stop. The electromotive force of the Voltaic cell is the difference of the half-cell potentials, a measure of the relative ease of dissolution of the two electrodes into the electrolyte.

Applications of Voltaic Cell

The applications include:

  • They are used in watches, clocks, remote controllers, calculators etc.
  • They are also used in cell phones, cameras, laptops.
  • They are used as Fuel cells for engines to power up.
  • They are also used in toys.

Advantages of Voltaic Cell

The advantages are:

  • The secondary cells produce a large and steady amount of electricity for a long time.
  • Secondary cells are rechargeable.
  • The primary cells are lightweight and hence, they are portable.
  • Primary cells provide a steady current and voltage.

Disadvantages of Voltaic Cell

The disadvantages are:

  • Secondary cells are expensive.
  • The Lead-Acid cells are heavy and acid may spill out.
  • Primary cells are not long-lasting.
  • Primary cells cannot be recharged.
