HomeFlash DriveWhat is Flash Drive | Inside Structure | Difference with Zip Drive

What is Flash Drive | Inside Structure | Difference with Zip Drive

Chakrasthitha
By Chakrasthitha

Flash Drive is a data storage device that is often known as a USB Drive or Jump Drive. This post will discuss in detail the meaning of a Flash Drive, what is inside a USB Drive, Applications, Advantages, and Disadvantages.

What is a Flash Drive

A Flash Drive, often known as a USB Drive or Pen Drive, is a data storage device that is compact, light, and portable. The primary function of Pen Drive is to transfer data from one device to another with ease.

Intro to Flash/ USB Drive

Fig. 1 – Introduction to Flash/ USB Drive

How does Flash Drive Work

One of the most significant advantages of a USB Drive is its ease of use. Plug it into a USB port on your computer, and the system will automatically recognize it as an external storage device. In a Flash Drive, data is stored on the Flash memory chip.

Pen Drives or USB Drives operate in the same manner as conventional Hard Discs. You can do operations like opening, copying, moving, and deleting files just like conventional Hard Drive storage. Because Flash memory chips are non- volatile, you can unplug the drive after finishing your work, and your data will be safely stored in the drive.

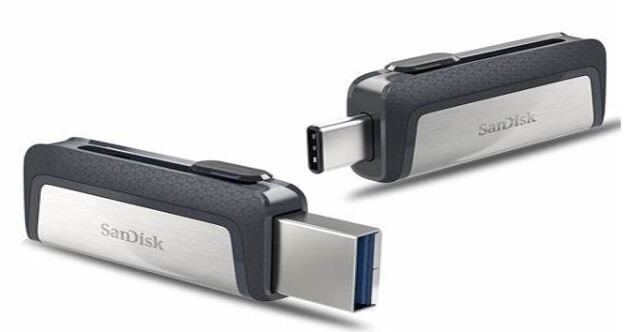

Type A, C USB Connector

Fig. 2 – Type A, C USB Connector

What is Inside Flash Drive

Flash Drive is mainly composed of:

  • Flash Memory Chip
  • Universal Serial Bus (USB) Connector
  • Controller Chip
  • Crystal Oscillator
  • Outer CoverA

Flash Memory Chip

It often known as SSD (Solid State Drive), is an electronic memory storage chip that can be erased, rewritten, and retains data even after the power has been switched off. Because Flash memory overcomes many of the constraints of the traditional Hard Disk Drive or CD-RW (Compact Disc – Read/Write) drives. Data transfer (read and write) of Flash memory is extremely fast. Currently, Flash memory with capacities ranging from 2GB to 2TB is available commercially.

Universal Serial Bus (USB) Connector

The Universal Serial Bus (USB) is a high-speed connector standard for connecting computers and mobile devices to peripheral devices. Specifications also describe data transmission, communication, and power supply management protocols (rules).

The recent 4.0 version of the specification defines data transmission modes of up to 5 Gigabytes per second. The specification also specifies fourteen different types of connectors, with Type-C and Type-A being the most prevalent.

Controller Chip

The Controller Chip allows the host device to access and modify data which is stored in a USB Drive.

Crystal Oscillator

It is nothing but a “clock” which regulates the timing of electronic components in the drive.

Outer Cover

USB Drive is usually enclosed in various shapes and sizes with plastic or metal casing which forms the Outer Cover.

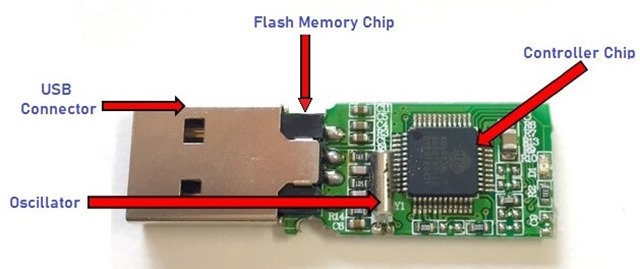

Components of Flash Drive

Fig. 3 – Components of Flash Drive

Is Flash Drive Same as Zip Drive

The Zip Drive is a removable floppy disc storage system that was introduced in 1994. It had two primary goals.

  • Easily transfer data between computers
  • Increased the capacity of the legacy floppy drive

Zip Drives were first introduced with capacities of 100 MB, then 250 MB, and finally 750 MB. At the time, a 3-1/2 inch floppy disc had 1.44 megabytes of storage space, so this was a significant advancement.

Though both the Flash and Zip drives share similar goals, the Flash Drive is a plug and play device which outperforms the Zip Drive in all areas like technology, capacity, data transfer speed, portability, ease of use, durability, and compatibility. As CD-RW and USB Drives became more popular in the early 2000s, Zip Drives declined.

Applications of USB Drive

The applications are:

  1. Trendy: Personal data transport and file sharing (documents, photos, and videos) is the most popular usage among users due to its compactness and ease of carrying.
  2. Mobile device: Low power consumption and low heat generation make it an ideal candidate as primary storage in mobile devices, and it is widely used.
  3. Laptops: Flash Drives are often used as a primary storage device in modern high-speed, lightweight, low-power-consuming laptops.
  4. Operating System (OS) Installation: Flash Drive can be used as installation media to install operating systems like Linux, macOS and Windows.
  5. BIOS Update: The computer motherboard firmware (BIOS or UEFI) can be upgraded using USB Drive.
  6. Booting from Flash: You can boot your computer using USB Drive as most modern computers support this. This is usually done when your primary storage disk is corrupt or has hardware issues.

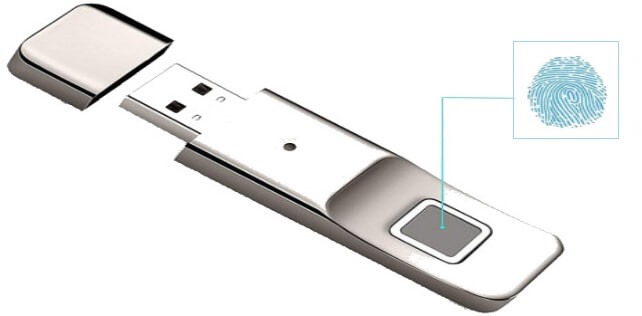

USB Drive with Biometric Security

Fig. 4 – Pen Drive with Biometric Security

Advantages of USB Drive

The advantages include:

  • Portability: Because USB Drives are compact and lightweight, they are convenient and portable.
  • Speed: Because USB Drives transfers data at a faster rate than legacy floppy drives and CD-RWs, they are increasingly being used in modern computers.
  • Low Resource Consumption: Flash Drives use less electricity, make less noise, and generate less heat. As a result, it is a very appealing proposition to pair with modern laptop computers and mobile devices.
  • Compatibility: Flash Drives are recognized and supported by most modern computers and mobile devices without having to install any additional software. They are compatible with almost all modern electronic devices, including your home entertainment devices.
  • Durability: Mechanically and magnetically, Flash Drives are less fragile than traditional hard drives and CD-RW drives.

Disadvantages of Flash Drive

The compact design of the USB Drive has its downsides. People tend to misplace or lose it, which can result in the loss of critical and sensitive data. To overcome this, it is a good practice to encrypt sensitive data. Also, if you believe your data is sensitive and vital, choose a Flash Drive with built-in Biometric security.
