A Webcam is an inseparable part of modern-day office setup. Your online meetings can not be done without it. With time, these webcams have seen a lot of evolutions and are now available in different sizes and prices. In this article, we will learn about What is a Webcam, its Purpose, Features, Working, Types, How to use it, and its Application.

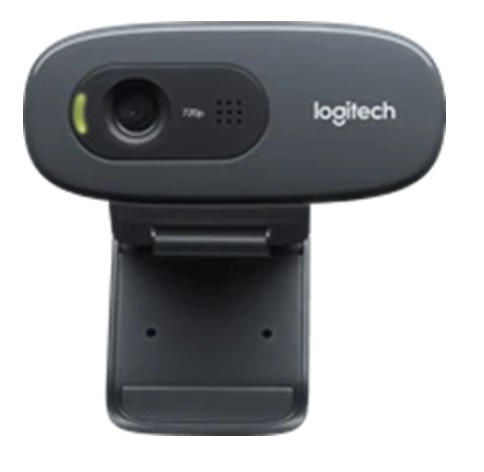

What is a Webcam?
A webcam, short for “web camera,” is a video camera that is used to record and share videos online. They are usually attached to computers or other devices through USB ports. They are frequently utilized for live streaming, videoconferencing, and other uses that call for instantaneous video communication.
Webcams can be standalone devices that are connected to a computer or other device, or they can be integrated into laptops and desktop computers. In addition to video, some webcams come equipped with microphones that can record audio. Since webcams are meant to be portable and have a tiny form factor, they may be used in many different locations with ease.
A lot of webcams additionally have capabilities like focus adjustability and others that let users tailor the video recording to their requirements. Webcams are a popular tool for many uses, such as live streaming, online schooling, and videoconferencing. They help facilitate real-time visual communication.
Purpose of Webcams
A webcam’s main function is to record and stream live video over the internet. A lot of applications that need real-time video communication employ webcams, such as live streaming and videoconferencing.
Desktop and laptop computers can come equipped with built-in webcams, or you can purchase additional webcam attachments that you can use with other devices. In addition to video, some webcams come equipped with microphones that can record audio also.
They facilitate remote communication between users via voice and video, which is helpful for online learning, remote team collaboration, and other uses where in-person interaction is preferred. Real-time video communication and the facilitation of audio-visual exchanges of ideas and information are the main goals of webcams.
Features of Webcams | How to Select Best Webcam for You
The webcams may vary in terms of dimensions, design, features, and cost. There are many features of a webcam that assist you in selecting the ideal webcam for your specific requirements:
Resolution:
Although many webcams support 720p and 1080p high-definition quality, resolution is a significant factor in photos and movies. Additionally, several webcams have 4K capabilities, but they cost more. Clear images can be obtained from a webcam that has a resolution of between 1.3 MP and 2.0 MP without going overboard.
Frame Rate:
While megapixels manage color and image brightness, frame rate controls video quality and determines the number of images presented per second. A decent webcam should have a frame rate of at least 30 frames per second. Images may wobble and tremor if the frame rate is less than 30 frames per second (fps).
The smoothest or highest-quality moving image or video can be obtained with a camera that records at 60 frames per second.
Auto-Focus and Zoom:
Webcams that possess auto-focus and zoom features adapt to maintain a sharp image even when the subject moves. This helps you stay focused during video conversations and record footage from various angles.
Low-Light Performance:
The performance of a webcam should be satisfactory even in low-light situations, and it should be able to adjust to different lighting conditions. Low-light correction is one feature that helps make sure the video is clear even in dimly lit spaces.
Integrated Microphone:
A lot of webcams have an inbuilt microphone that lets users record audio and video without using a separate microphone. For effective communication during online meetings or video conversations, this capability is crucial.
Working of Webcam
A webcam is a small digital camera that you can connect to your computer and use to stream live video images as they happen. Similar to a digital camera, it uses an Image-Sensing Microchip (either a charge-coupled device (CCD) or, more often these days, a CMOS image sensor) that has a tiny grid of miniscule light detectors to catch light through a small lens at the front.
The image sensor and its circuitry transform the image in front of the camera into digital format, which is a series of zeros and ones that a computer can understand.
A webcam does not require a built-in memory chip or flash memory card, unlike digital cameras, as its purpose is to record and send images straight to a computer, negating the need for it to “remember” them. USB cords are inserted into the back of webcams for this reason.
The webcam receives power from the computer via the USB cable, which also returns the digital data obtained by the camera’s image sensor to the computer and sends it to the Internet. Certain cameras can function without a computer connection by sending their images to your Internet router via Wi-Fi.
From there, they can be accessed by other computers in your home network or by anybody, anywhere on the globe, via the Internet.
How does a Webcam’s Image Sensor Chip Work?
Every webcam operates in the same way: it uses an image sensor chip to capture moving images, which it then translates into digital streams that are uploaded to the Internet. What powers a webcam is its image sensor chip.

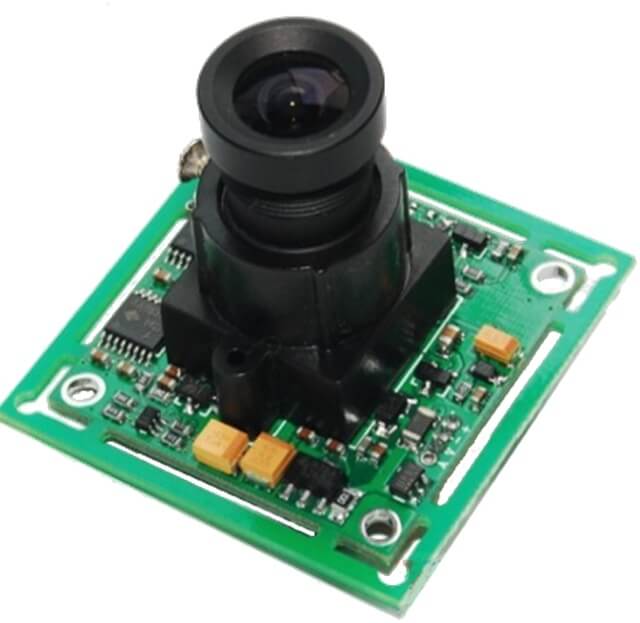

When you remove the webcam’s outer casing, you’ll see that it’s just a tiny electronic circuit board with a plastic lens set on it. To adjust the focal length of the lens and manage the focus of your camera, screw it in and out.

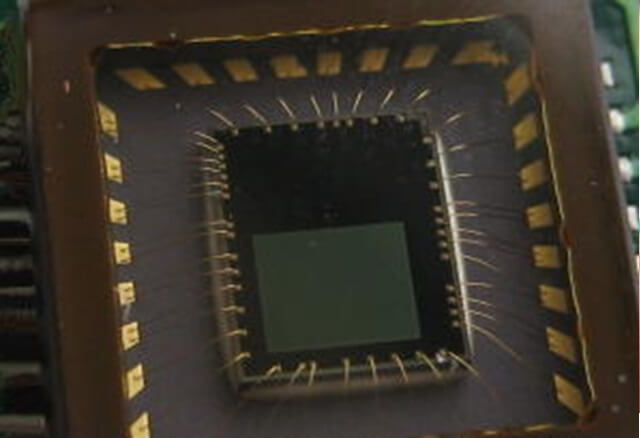

Upon removing the lens, the image sensor—a CCD or CMOS chip—is visible. It is the square component located in the center of the circuit. The entire chip is used to connect the light detector to the larger circuit surrounding it; just the tiny, green-colored core portion is light-sensitive as shown in figure above.
How a Picture is Converted into Digital Form?
Light zooms into the lens when you look into your webcam or take a digital photo. As soon as this incoming “picture” reaches the image sensor, it is divided into individual pixels and given a numerical form.
The two types of image sensors—CCDs and CMOS chips—achieve this goal in somewhat different ways. Like photoelectric cells, both initially transform incoming light beams into electricity. However, a CCD is simply an analog optical chip that transforms light into a variety of electrical signals. These signals are then transferred to one or more additional chips for digitalization, or the conversion of light into numbers.
A CMOS chip, on the other hand, combines these functions into one single device. It is capable of capturing light beams and converting them into digital signals. In other words, it’s a digital gadget, whereas a CCD is an analog one.
An incoming image is translated into an outgoing pattern of digital pixels, regardless of whether the image is being generated by a CCD and other circuitry or by a CMOS sensor. We will just refer to “the image sensor” from now on.
The image sensor first determines the amount of light reaching each pixel. This data is converted to a number so that it can be kept on the camera’s internal memory chip. As a result, when you take a digital photo, what you see is just a continuous series of numbers. Every digit in the graphic represents a single pixel, indicating its color and brightness.
Nowadays, the majority of low-cost cell phone cameras and webcams use CMOS semiconductors since they are more affordable to produce in large quantities and function faster than CCDs. However, there are still many uses for CCDs, including low-light astronomy.
Step by Step Demonstration of How an Image is Digitized
- Light enters the camera lens from the object (a bicycle in this case).
- The image is divided into millions of pixels (squares) by the image sensor within the camera. You can view the image that the sensor is capturing on the back of the camera through an LCD; this is a computer-generated, redrawn image of the original object that is presented on a screen, as opposed to an image of the object seen through a series of lenses (as with a conventional camera).
- Each pixel’s color and brightness are measured by the sensor.
- The camera’s memory card stores the color and brightness as binary integers or patterns of zeros and ones. These numbers go straight down the wire when you connect your camera to a computer.
Types of Webcams
There are various types of webcams such as:

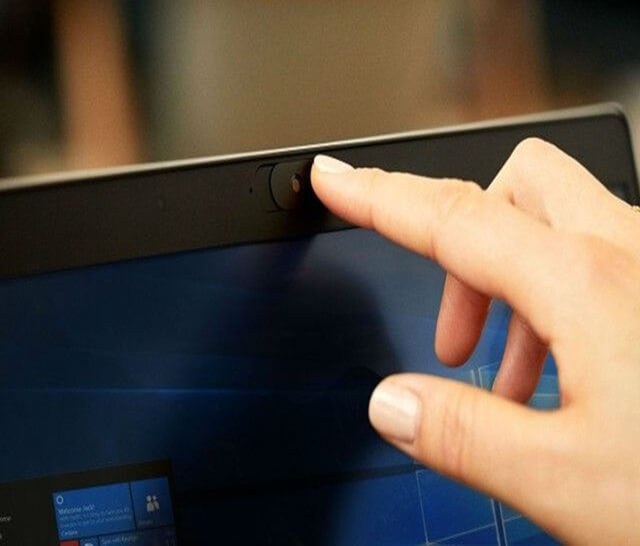

Built-in Webcams:
Webcams that are integrated into the design of many laptops and desktop computers are known as built-in webcams. These webcams are easy to use because they don’t need to be set up or installed again, but their capability could be less than that of standalone webcams.

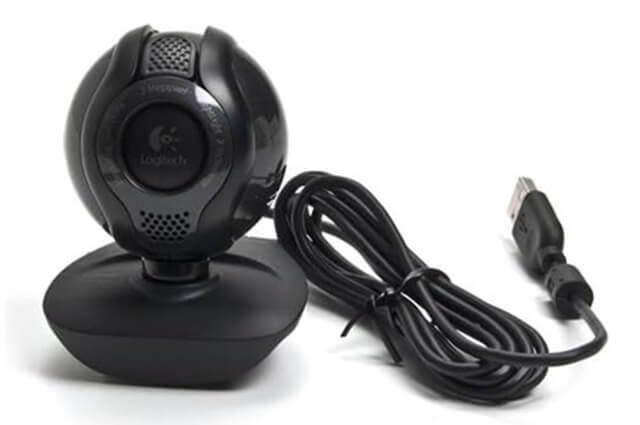

Standalone Webcams:
Webcams on their own are independent gadgets that can be linked to a computer or other device through a USB connector. Compared to built-in webcams, these models are more adaptable and could have more sophisticated features like integrated microphones, greater resolution, and focus adjustment.
Wireless Webcams:
Webcams that don’t require a physical connection to a computer or other device are known as wireless webcams. Rather, they use a network connection to wirelessly broadcast video.

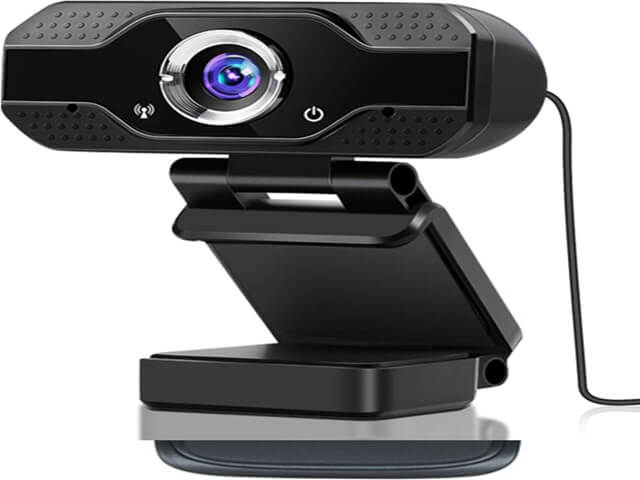

High-Definition (HD) Webcams:
Compared to ordinary webcams, HD webcams provide higher-resolution video, which can enhance the quality of video transmission.
Ultimately, a user’s choice of webcam is determined by their own requirements and preferences, including the purpose of the device, the functionality and quality they want, and their financial constraints.
How to Use a Webcam
Using a webcam is easy; however, there are a few things you need to do:
Install the Webcam:
If your webcam is standalone, you must install it by plugging it into a USB port on your computer or another device. You don’t need to install the webcam if it is built-in.
Install required Drivers:
To ensure optimal operation, certain webcams may require the installation of drivers, which are software programs that allow the webcam to communicate with your computer or other device. Installing the drivers from a CD that comes with the webcam or from the manufacturer’s website could be necessary if you’re using a standalone webcam.
Set up the Webcam:
After the webcam and its drivers have been installed, you might need to configure the webcam to function with your computer or other device by changing its settings. In the audio and video settings of your operating system, you might need to set the camera as the default input device.
Use the Webcam:
After it is configured, you may use the webcam to record and send video by opening a webcam program, connecting it to a platform for video conferences, or utilizing it with other applications for video communication.
Installing a webcam, installing any required drivers, and configuring the webcam to function with your computer or device are usually easy steps in the process of using a webcam. You can use the webcam to record and send video for several purposes once it is configured.
Applications of a Webcam
Webcams are frequently utilized for many purposes, such as:
Videoconferencing
A common tool for videoconferencing is a webcam, which enables distant voice and video communication between participants. This can be helpful for remote team collaboration, corporate meetings, and other situations where in-person communication is preferred.
Online Learning
Students can participate in classes and lectures remotely thanks to the use of webcams in online learning. Students who are unable to physically attend classes because of distance, scheduling conflicts, or other reasons may find this valuable.
Live Streaming
For live streaming applications like live concerts, athletic events, or other performances, webcams are utilized to record and send footage in real-time.
Security
Webcams can be used to remotely monitor a home or workplace or to broadcast live footage of a public space.
Social Media
Webcams are frequently used to record and upload videos for users. And also to share with a wider audience on social media sites like YouTube, Instagram, Facebook, etc.
Webcams are widely utilized for many different purposes and are generally considered a valuable technology for providing real-time video communication.
To sum up, webcams are video cameras that are utilized to record and send live video over the internet. They are frequently employed in applications that call for real-time video communication, such as live streaming and videoconferencing. Webcams can be standalone devices that are connected to a computer or other device.
They can be integrated into laptops and desktop computers. Among the many benefits of webcams are their mobility, ease of use, and capacity for real-time video communication. They do, however, have certain drawbacks, including quality variances, the need for a steady internet connection, and certain privacy issues.
In general, webcams are a helpful tool for facilitating real-time video communication. They are frequently used for a range of purposes, such as live streaming, online learning, videoconferencing, and security.
